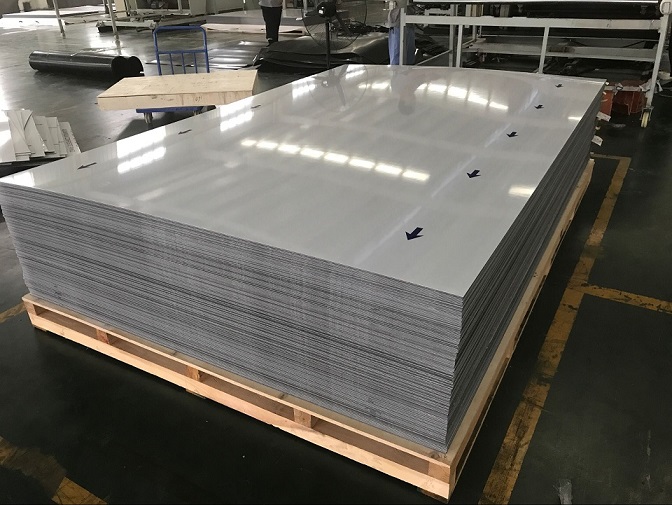

YUNZHI is a leading China 3mm UV Printing Aluminum Composite Material manufacturer, suppliers and exporter. The 3mm UV Printing Aluminum Composite Material consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum coats PE (Polyester) paint. The 3mm UV Printing Aluminum Composite Material is a great printing carrier with light weight and easy transportation, installation, and customer customization. The 3mm UV Printing Aluminum Composite Material is a 100% recyclable material and is very environmentally friendly This 3mm UV Printing Aluminum Composite Material is widely used as interior decoration materials all around world. The thickness of PE painting mostly we use 16 um, also we can do double side coating , and the thickness around 25 um. For the PE coating mostly we guarantee it for 10 years.
YUNZHI is a professional leader China 3mm UV Printing Aluminum Composite Material manufacturer with high quality and reasonable price.
YUNZHI is a leading China 3mm UV Printing Aluminum Composite Material manufacturer, suppliers and exporter.
The 3mm UV Printing Aluminum Composite Material consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum coats PE (Polyester) paint. Due to its excellent flexibility and sound insulation performance, etc.
The 3mm UV Printing Aluminum Composite Material is a great printing carrier with light weight and easy transportation, installation, and customer customization.
The 3mm UV Printing Aluminum Composite Material a 100% recyclable material and is very environmentally friendly
This 3mm UV Printing Aluminum Composite Material is widely used as interior decoration materials all around world. The thickness of PE painting mostly we use 16 um, also we can do double side coating , and the thickness around 25 um. For the PE coating mostly we guarantee it for 10 years.
Welcome to contact us.
|
Specification of 3mm UV Printing Aluminum Composite Material |
|
|
Panel thickness |
3mm,4mm.5mm,6mm |
|
Panel width |
1000mm,1220mm,1250mm,1350mm,1500mm,1570mm,2000mm |
|
Panel length |
2440mm-5800mm,or per customer’s request |
|
Alu. skin thickness |
0.05-0.5mm |
|
Standard size |
1220(W)×2440(L)mm |
|
suface treatment |
Polyester coating |
|
Core |
Normal PE core |
|
Warranty |
10 years |
YUNZHI is a leading China PE coating Aluminum Composite Panel manufacturers, suppliers and exporter.The PE coating aluminum composite panel consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum coats PE (Polyester) paint. Due to its excellent flexibility and sound insulation performance, etc., this PE coating aluminum composite panel is widely used as interior decoration materials all around world. The thickness of PE painting mostly we use 16um, also we can do double side coating , and the thickness around 25um . for the PE coating mostly we guarantee it for 10yesrs
High quality PE coating Aluminum Composite Panel is offered by China manufacturers YUNZHI. PE coating aluminum composite panel can be used for
- billboards.Signboard usage and advertisement boards
- Building interior wall decoration
- subway interiors and other industrial usage.
- Decoration and renovation the wall of old buildings
- Decoration of shop door, interior wall, ceiling, bathroom, kitchen and balcony
- Aluwell polyester aluminium composite panel is also ideal for using as wallboard and ceiling for tunnels
- interior wall decoration, low building cladding, shop face decoration, partitions interior decorations
PE coating aluminum composite panel which falls into matte and gross series according to grossness, and it has the high molecular polymer of the ester bond in the backbone chain as the monomer and is added with alkyd resin and ultraviolet absorbent. It is specially fit for interior decoration and advertising board. The structure of the polyester molecule is compact with a brilliant and rich surface which can fully satisfy the high demand for surface flatness in printing. The weather resistance is 8-10 years.
The PE coating aluminium composite panel has a great number of advantages and characteristics,
like light weight, high strength, extreme rigidity, superior impact resistance, excellent surface flatness and smoothness, heat insulation, sound insulation, acid-resistance, alkali-resistance, good weatherproofing, and uniform colors, etc.
In addition, the PE coating aluminum composite panel can be easily processed, fabricated, and quickly installed. It is elegant and magnificent, and its good flexibility makes it fit to various designs. It is also characterized by easily maintenance and simple cleaning. light and strong/ to choose color/ gorgeous and colorful decorative, decorative pattern and design can be customized.- Various colors and easy to maintain
We can produce all colors on all professional color cards，also we can match the according to your requirements . also you can choose the color from RAL or Pantone color chart
|
|
2mm |
3mm |
4mm |
|
Panel weight(kg/m2) |
2.9 |
3.8 |
4.8 |
|
Aluminium sheet thickness(mm) |
0.3 |
0.3 |
0.3 |
|
Panel thickness tolerance(mm) |
+/-0.2 |
||
|
Panel width tolerance(mm) |
+/-2 |
||
|
Panel length tolerance(mm) |
+/-3 |
||
|
Panel diagonal tolerance(mm) |
+/-5 |
||
|
Aluminium sheet thickness tolerance(mm) |
+/-0.02 |
||
|
Paint thickness(Micron) |
21-23 |
||
|
Paint pencil hardness |
> HB |
||
|
Paint toughness |
3T |
||
|
Impact strength (kg.cm) |
50 |
||
|
Temperature resistance |
-50℃to + 90℃ |
||
|
Peel strength(180°) |
> 5 Newton/mm |
||
|
Boiling water resistance |
2 hours without change |
||
|
Acid resistance |
Immersed surface in 2% HCI for 24 hours, without change |
||
|
Alkali resistance |
Immersed surface in 2% Ca(OH)2 for 24 hours, without change |
||
|
Solvent resistance |
100 times with Dimethylbenzene without change |
||
|
Cleaning resistance |
Over 100 times without change |
||
|
Expansion coefficient(100°K temperature difference) |
2.4 mm/m |
||
